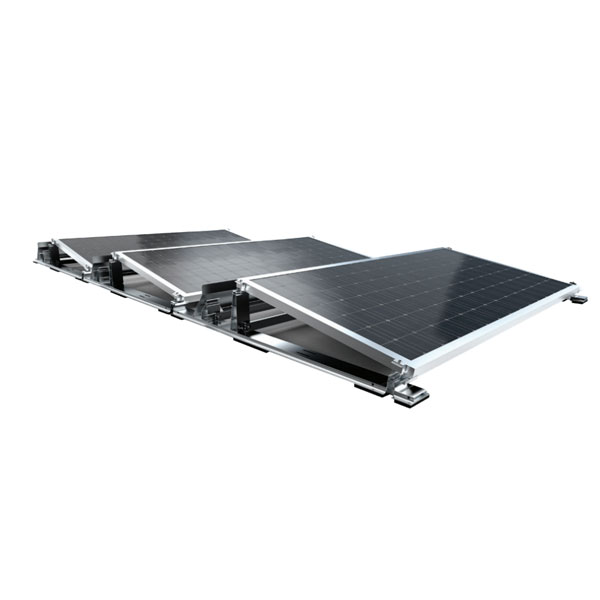

Description
Maximum yields
Highest yields with a power density1 of up to 187 Wp/m² and optimised module rear ventilation.
Optimal use of the roof area
The compact design and 10° elevation angle enables a roof area utilisation of up to 82 %. Unobstructed roof drainage in accordance with DIN 1986-100 is ensured.
Simple click system
Quick and easy installation thanks to non-interchangeable click connections, measurement-free assembly and re-releasable connections. Length expansion effects are minimised.
Ideal cable routing
Q.FLAT-G6 enables separate installation of DC + / - (separation distances +150 mm). Easy cable management thanks to 3-fold edge clips and integrated cable duct cover.
Minimal ballast
Latest wind tunnel evaluations improve aerodynamics and increase system stability. Optional side covers are available for wind load reduction.
Integrated fall protection
According to DIN EN 795:2012 and CEN / TS 16415:2013 (in progress) certified, circumferential safety rope system is integrated and can optionally be extended by a rope system for max. 3 persons (max. 300 kg).
Maximum safety
Building authority approval Z-14.4-790 (extension applied for), UL 2703 (approval in progress), lightning current carrying capacity according to DIN EN 62561-1 (VDE 0185-561-1):2013- 02 (extension applied for)
